        Your present location:Homesilicone productsProductsMold Making Silicone RubberShoe mold Silicone > Shoe mould silicone rubber

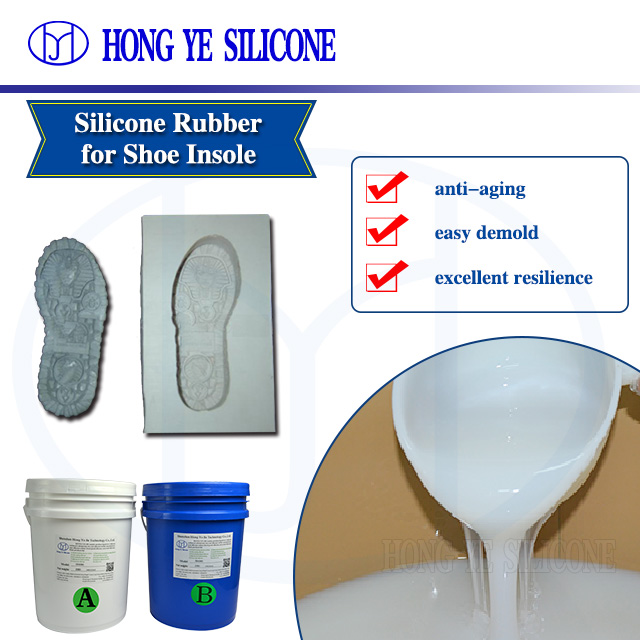

        • Product Name: Shoe mould silicone rubber
        • Product No.: HY-235
        • Brand: HY silicone
        • Product Usage: Shoe soles mold, sand casting, brushing mold.
        • Commodity price:
        • Views : 1707



        DESCRIPTION OF SHOE MOULD SILICONE RUBBER:
          HY-235 silicone rubber is mainly used for shoe molds, sand casting, sole sampling, plaster models, simple products, products with non-complex patterns, as well as product models with stable size and non-deformation.



        USAGE OF SHOE MOULD SILICONE RUBBER:

                    Shoe soles mold, sand casting,brushing mold.



        MAIN FEATURES OF SHOE MOULD SILICONE RUBBER:
               -An exceptional fluidity and good operability, easy to remold
               -Cures at room temperature within 3-4 hours
               -Good tensile and tear strength, low shrinkage
               -Good resistance to weather, temperature, aging, acid.



        USING INSTRUCTION OF SHOE MOULD SILICONE RUBBER:

               Component A is white flowing liquid and component B is the curing agent.For example,take silicone rubber of 100g and add 2% curing agent for mixing evenly.After the silicone rubber and the curing agent are completely mixed,put the silicon into a vacuum machine for deairing to remove the bubbles.After deaired, pouring the liquid silicone rubber into the product to be duplicated or into the mold frame.


        USING NOTE OF SHOE MOULD SILICONE RUBBER:

          The product is used for pouring or brushing technique. That is to say, fix the product or sole model to be duplicated onto a plane plate, then enclose the plane frame with wooden plates to prevent the leakage of the silicon, mix the silicone rubber and the curing agent evenly according to the mixing ratio of 100 : 2 and pour them onto the sole model, then brush evenly with a wooden plate or a brush, and fill up the mold frame with gypsum after the silicone rubber is dried.



        STORAGE AND PRECAUTIONS OF SHOE MOULD SILICONE RUBBER:

          The product, which is an environmentally-friendly liquid silicone product, is not easy to burn and can be stored and transported as non-hazardous goods. The shelf life of the product is about one year from the date of production. Inspection is required when exceeding the time limited. It can continue to be used in case of neither thickening nor deterioration.


        PACKAGE OF SHOE MOULD SILICONE RUBBER:
        25KG/drum vacuum packing for part A +1kg/ bottle catalyst for part B
        200KG/drum packing for part A +1kg/ bottle catalyst for part B



        SHELF LIFE OF SHOE MOULD SILICONE RUBBER:
        1.Twelve(12) months when stored under dry and cool place by original package under 25℃



           If you have any interest or need more information, welcome to contact now:

          Hotline: 86-755-89948019

                       86-755-89948006

                       86-755-89948294




          E-mail: info@szrl.net              Skype:taylordl828





        TECHNICAL PARAMETERS OF SHOE MOULD SILICONE RUBBER:

        Model

        Appearance

        Viscosity (cps)

        Hardness (A°)

        Tensile Strength (Mpa)

        Tear Strength (KN/m)

        Elongation (%)

        Mixing Ratio(%)

         Pot life

        (H)

        Demould

         time(H)

        235

        White

        14000±2000

        20±2

        ≥1.2

        5±2

        ≥180

        2~3

        0.5~2

        2~4
