        • Product Name: Encapsulants and potting silicone
        • Product No.: HY-9050
        • Brand: HY silicone
        • Product Usage:
        • Commodity price:
        • Views : 107



        ENCAPSULANTS AND POTTING SILICONE DESCRIPTION:

        Encapsulants and potting silicone is a newly insulating material silicon of silicon compounds.It cures with no heat, no corrosion and little shrinkage. It can be applied to the sealing and pouring of various electronic components, and then forming insulation system.



        ENCAPSULANTS AND POTTING SILICONE APPLICATION:

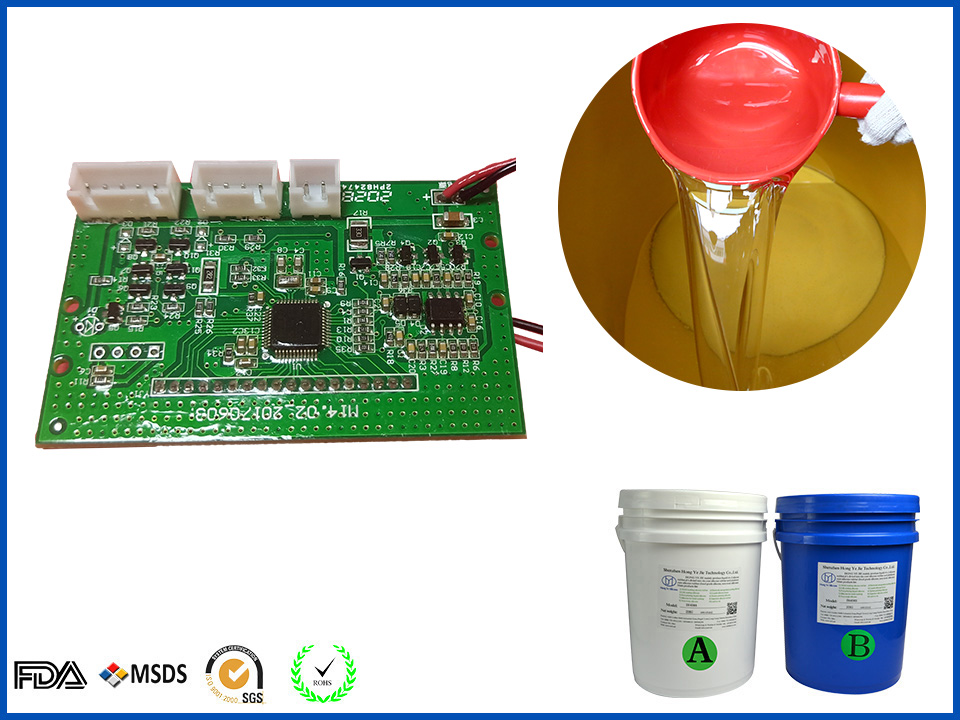

        HY-9050 is suitable for bonded seal of electronic components, power module and control module, which requires waterproof and insulation. It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.



        ENCAPSULANTS AND POTTING SILICONE MAIN FEATURES:

        Room temperature vulcanize, and easy to operate;
        Maintain flexibility at a wide temperature range, and excellent insulation performance;
        Waterproofing, moisture-proof, mouldproof, dustproof, and fixed components;
        Resistance to Chemical dielectric, anti-yellowing, resistance to climate ageing.



        ENCAPSULANTS AND POTTING SILICONE TECHNICAL GUIDELINES:

        1, Pls put part A and part B in separate container and stir evenly before mixing the two part
        together.
        2, Weight Ratio: part A: part B = 1:1
        3, Deaeration the mixture under 0.08 MPa for 3 minutes.
        4, The temperature influences the curing time of 9301. When in too low temperature, we
        suggest customers appropriately heat the mixture to accelerate vulcanization.


        ENCAPSULANTS AND POTTING SILICONE WARM TIPS:
        1.The following material may hinder the curing of the product, So pls apply after summary experiment. When necessary, pls clean the application areas.Condensation silicone which not completely cured or organic tin compounds Sulphur, sulfide and sulfur rubber materials.Amine compounds as well as contains the amine materials.Pewters solder flux.
        2. Should be sealed storage.The mixture should be used up at once, avoid causing waste.
        3. Silicone belongs to non-dangerous goods, but keep away from mouth and eyes.
        4. When it gets stratified after a period of storage, Please mix 9301 evenly before using, it does not affect the performance.



        ENCAPSULANTS AND POTTING SILICONE SHELF LIFE AND TRANSPORTATION:

        1. Twelve(12) months from date of shipment when stored at 24C in original unopened packages.
        2. This kind of product is non-dangerous product, it can be transported as general chemicals.
        3. Products exceed the storage life should be confirmed normal before using.



           If you have any interest or need more information, welcome to contact now:

          Hotline: 86-755-89948019

                       86-755-89948006

                       86-755-89948294

          E-mail: info@szrl.net              Skype:taylordl828



        ENCAPSULANTS AND POTTING SILICONE TECHNICAL PARAMETERS:

        Features

        Part A

        Part B

        Before Curing

        Appearence

        Gray Fluid

        White Fluid

        Viscosisty(25℃cps)

        2500±500

        2500±500



        Operation features

        Mixing Ratio

        1:1

        Viscosisty(after mixing) (cps)

        2000~3000

        Operating Time(min, 25℃)

        120

        Curing time (min,25℃)

        480

        Curing time(80℃  min)

        20





        After Curing

        Hardness(Shore  A)

        50±5

        Thermal conductivity [W(m·K)]

        ≥0.8

        Dielectric Strength(KV/mm)

        ≥25

        Permittivity(1.2MHz)

        3.0~3.3

        Volume Resisivity(Ω·cm)

        ≥1.0×1016

        linear expansibility [m/(m·K)]

        ≤2.2×10-4

        Fire Resistance

        94-V1
