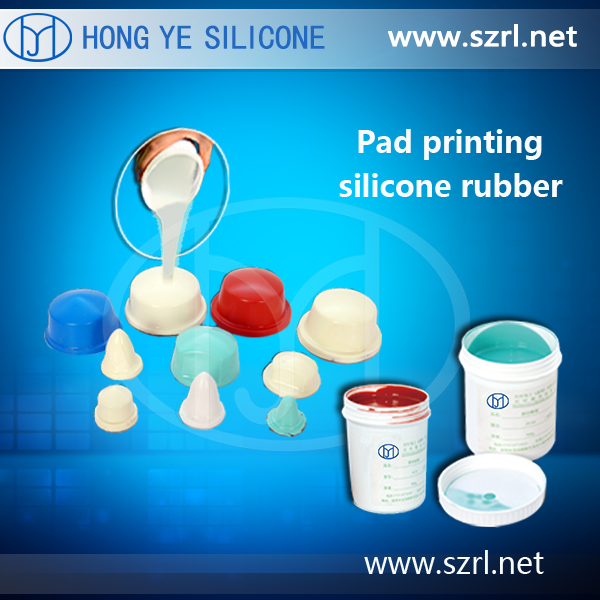

        • Product Name: RTV Pad Printing Silicone Rubber
        • Product No.: HY-933
        • Brand: Hong Ye Silicone
        • Product Usage: Making silicone printing pads, as a transfer of patterns from the steel plate onto the product'
        • Commodity price: discuss personally
        • Views : 284

        RTV PAD PRINTING SILICONE RUBBER DESCRIPTION:(LINK)
        HY-933 is a kind of room temperature vulcanized silicone rubber also is a addition cure silicone rubber / platinum cure silicone rubber for making printing pad. It’s generally named as two part silicone rubber with
        9:1 mixing ratio. Part A is a flowable liquid, part B is the curing agent or catalyst. It’s mainly used for making printing pad.

        The silicon pad is a carrier which transfers the patterns from the steel plate onto the products' surface. It has the advantage of good printing effects, fine quality, good resilience, and without any impurity.


        RTV PAD PRINTING SILICONE RUBBER APPLICATION:
        HY-933 silicone rubber is used for is mainly use for printing irregular patterns on plastic toys,shampoo, pen, glass,electroplating products,electroplating toys and trade marks artwork gifts, and stationery and so on.



        OPERATION of making silicone rubber printing pads:

        Step 1: prepare the original silicone pad molds
        Make sure your original molds smooth and Clear .

        Step2: Mix 9 part of A liquid silicone and silicone oil
        Usually the original hardness of the silicone pad is around 28 shore A , our customer will add silicone oil by adjust the hardness , when adding 2% silicone oil , the hardness will reduce 2 shore A , for example 933 silicone is 28 shore A , if you require hardness of 25 shore A for printing , then add 6% silicone oil .The percentage of silicone oil added should not more than 30% . Adding silicone oil into the liquid silicone and mix it evenly

        Step3:Add 1 part of B catalyst into the mixture of liquid silicone with silicone oil and mix them evenly.
        *Notes: After the Step 2 by adding and mix the silicone oil evenly ,add 10G catalyst into the mixture (10% is the weight for the totally mixture of liquid silicone and silicone oil ) and mix them evenly .
                 1.Weigh the exactly weight by electronic weight..
        If not , for example add two much catalyst , the operation time will be too fast to operate ,which will cause inconvenience to operate .
                 2.Mixture should stir evenly.
        Otherwise the silicon rubber will be partly solidified and this will give birth to difficulties in your final operation. What’s more, the finished molds will meet a short life. All of these will cause a waste of silicon rubber.


        Step4: Vacuum pumping
        Without exception, this step takes less than 10 minutes. Otherwise, it will cause cross linking reaction, and no more further steps will be available.



        Step 5: Pouring the mixture into the original mold
        *Notes:1. Put an wooden board on the surface of the silicone pad and set an hole on the board to make sure the board will closely stick on the pad .
                2.Wait till the silicone pad totally cured before put into production.


        RTV PAD PRINTING SILICONE RUBBER PACKAGE:
        20KG/drum or 25KG/drum or 200KG/drum for part A +1kg/ bottle catalyst for part B



        RTV PAD PRINTING SILICONE RUBBER SHELF LIFE:
        Tweleve (12) months when stored under dry and cool place by original package under 25℃.



        RTV PAD PRINTING SILICONE RUBBER DATASHEET:

        Model

        Viscosity

         (cps)

        Hardness

         (A°)

        Tensile

        Strength

        (Mpa)

        Tear

        Strength

        (kN/m)

        Elongation

        (≥%)

        Mixing

        ratio

        Operating

        Time(min)

        Curing

        Time(Min, 25℃)

        HY-933

        10000-15000

        34±3

        4.5

        25

        ≥350

        9:1

        30~60

        3~5

        Note: Above technical datasheet of HY-933 pad printing silicone rubber is not the fixed parameters, and it's adjustable

        according to customer's requirements.
