        • Product Name: Silicone Rubber for Shoe Mold
        • Product No.: Shoe Mold Silicone
        • Brand: Hong Ye Silicone
        • Product Usage: Shoe mold silicone rubber is a kind of liquid RTV-2 silicone rubber,which is good for mold making.
        • Commodity price: Discuss personally
        • Views : 140

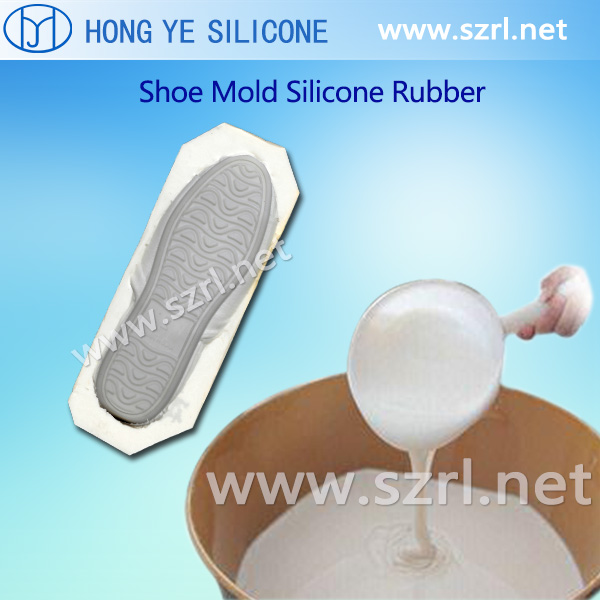

        SILICONE RUBBER FOR SHOE MOLD APPLICATION:
            Shoe mold silicone rubber is a kind of liquid RTV two-component silicone rubber, part A is liquid silicone base, part B is curing agent. They will room temperature vulcanization after adding catalyst into silicone base.
            Add curing agent of 2%-5% to liquid silicone at the condition of room temperature, stir the mixture evenly, then pour or brush the liquid mixture to the mother mold, then after 2-6 hours, a flexible silicone rubber mold will be obtained
        Generally, there are two molding methods for shoe molding: pouring molding, brushing molding.


        SILICONE RUBBER FOR SHOE MOLD INSTRUCTION :
        1. The amount of the curing agent depends on the actual requirements of customers. If molds requiring fast drying and demould, more curing agent is needed; contrarily, if molds require slower drying and demould, less curing agent will be needed.
         (Note: our company does not recommend that customers add silicone oil. If customers surely need quite soft silicone mold or molding for fine detailed and complex patterns products, 5%-10% silicone oil can be added to soften the mold for easy demoulding.)

        The proportions and reactions of the curing agent and the base silicone are listed as the followings:
          1. With 1% catalyst, the handing time is within 2.5 hours and silicone the mold can solidify after 8 hours.
          2. With 2% catalyst, the handing time is within 1 hour and the silicone mold can solidify after 6 hours.
          3. With 3% catalyst, the handing time is within 30 minutes and the silicone mold can solidify after 4 hours.
          4. With 4% catalyst, the handing time is within 15 minutes and the silicone mold can solidify after 2 hours.
        (Note: Above speculation is not fixed data, because we provide 5 types of catalyst with different curing speed)

        SILICONE RUBBER FOR SHOE MOLD PACKAGE:
        1 kg/jar, 5 kg/drum, 20 kg/drum, 25 kg/drum, 200 kg/drum and vacuum package is available.

        SILICONE RUBBER FOR SHOE MOLD SHELF LIFE:
        Twelve(12) months when stored under dry and cool place by original package under 25℃ .

        SILICONE RUBBER FOR SHOE MOLD TECHNICAL DATASHEET :

        Model

        Viscosity

         (cps)

        Hardness

         (A°)

        Tensile Strength

            (Mpa)

        Tear Strength

           (kN/m)

        Elongation

        (≥%)

        Mix

        ratio(%)

        Handing

        time(min)

        Curing Time

        (hr, 25℃)

        HY-615

        13000+2000/-4000

        15±2

        3.5

        20

        ≥350

        2~5

        30~60

        3~5

        HY-620

        17000+2000/-4000

        20±2

        4

        23

        ≥400

        2~5

        30~60

        3~5

        HY-625

        25000+5000/-8000

        25±2

        4.8

        29

        ≥400

        2~5

        30~60

        3~5

        HY-630

        27000+5000/-8000

        30±2

        5.3

        31

        ≥400

        2~5

        30~60

        3~5

        HY-520

        10000+2000/-4000

        20±2

        3.2

        15

        ≥310

        2~5

        30~60

        3~5

        HY-530

        14000+2000/-4000

        30±2

        3.4

        16

        ≥240

        2~5

        30~60

        3~5



        Note: Above technical datasheet doesn’t include all of our products, and it’s not the fixed data, they can be adjustable according to

        customer’s requirement.
