        • Product Name: Two Part Sealing Silicone Gel
        • Product No.: Two Part Sealing Silicone Gel
        • Brand: Hong Ye Silicone
        • Product Usage: it is specially used for sealing the sump / flume of the air filter for sealing purposes.
        • Commodity price: Discuss personally
        • Views : 56



        TWO PART SEALING SILICONE GEL APPLICATION:

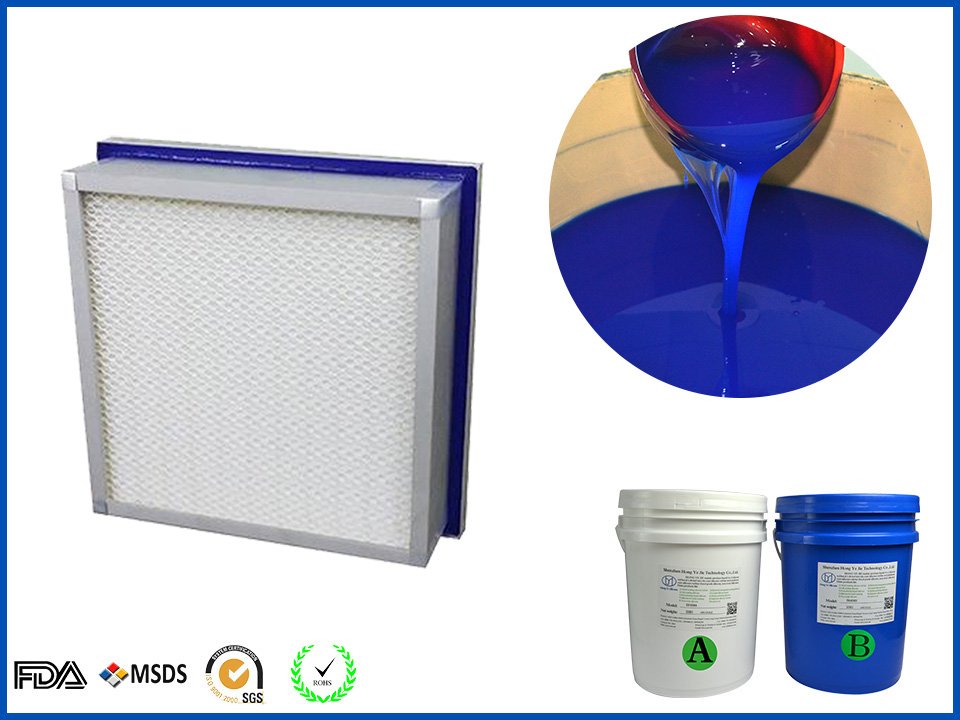

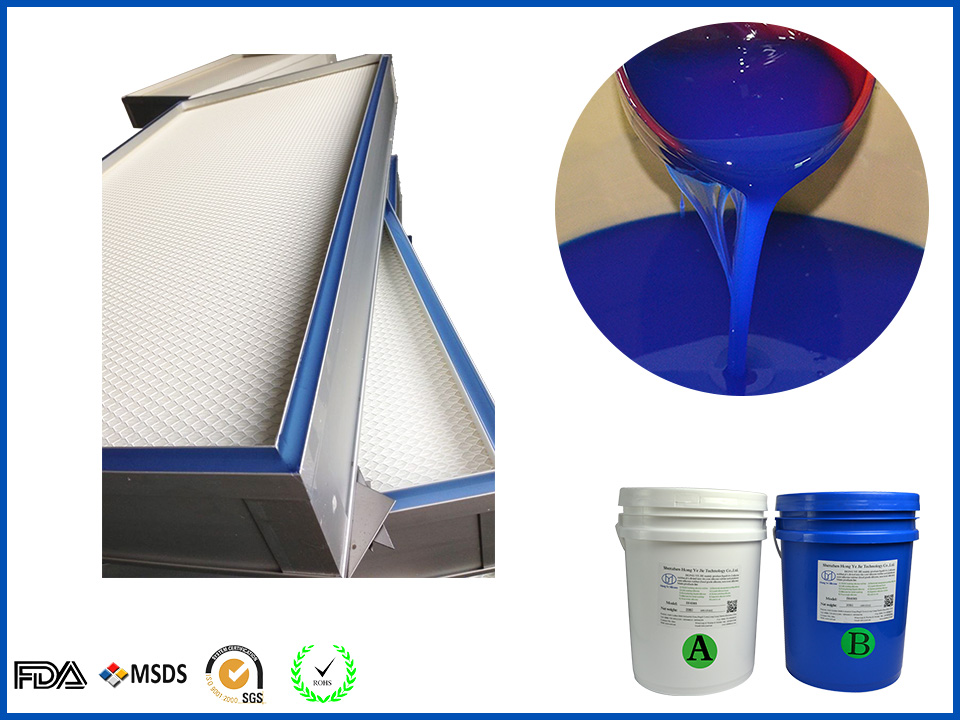

        This silicone rubber is specially used for sealing the sump / flume of the air filter for sealing purposes. Air filter is trapping mainly dust particles and and various suspended solids of 0.5um or less. Ultra-fine glass fiber paper as filter, offset paper and aluminum as dividing plate, it has high filtration efficiency, low resistance, high dust holding capacity and other characteristics.
        It specifically for use in high efficiency air filters. A sealing effect of sealed air tight can be formed in the grooves, and the adhesion is very well between the silicone elastic gel and the groove wall. If you move or take away the filter, this elastic gel will easily separate from the filter and  reply the elasticity, and can automatically restore the sealing effect.
        It also can be applied to the surface PC (Poly-carbonate), PP, ABC, PVC, etc. and metal surface.


        TWO PART SEALING SILICONE GEL DESCRIPTION:

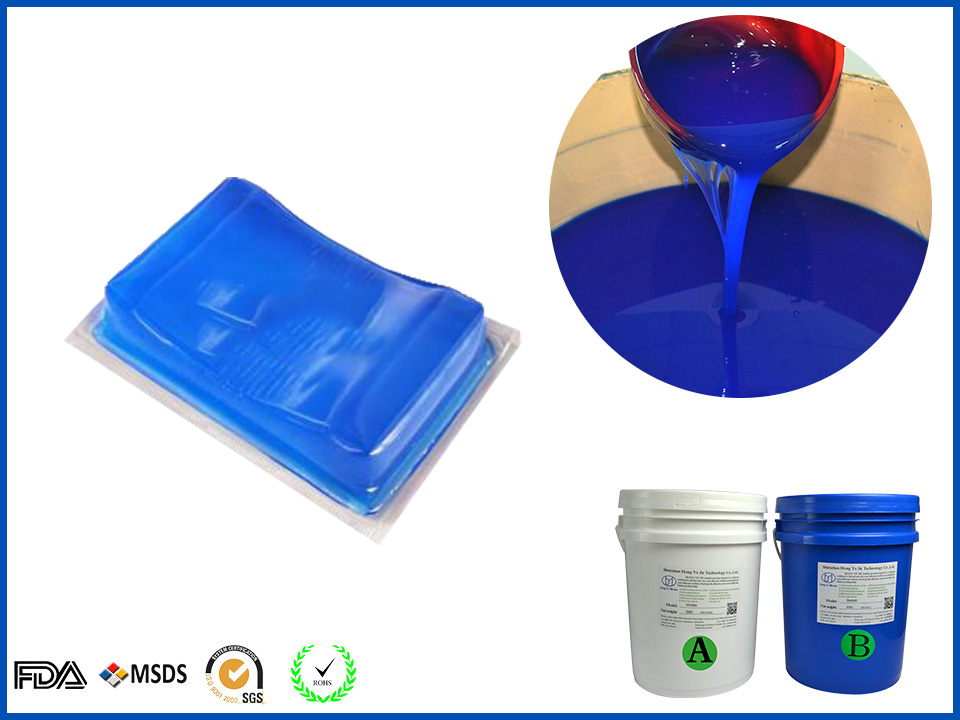

        Two parts sealing silicone rubber is an elastic gel after curing, a viscous gel which is formed with two-component, part A is transparent liquid silicone, part B is blue curing agent. Mix part A and B with 1:1 mix ratio at room temperature, then you will get a viscous silicone elastomer.

        With following advantages: convenient weighing, easy potting, no emissions, waste, waste emissions, xcellent weather resistance, excellent chemical stability, corrosion resistance, can absorb the stress generated by thermal expansion and contraction without cracking, moderate hardness, elastic recovery is good.



        TWO PART SEALING SILICONE GEL FEATURES:
        1. Two parts, part A is liquid silicone, part B is curing agent
        2. Low viscosity, good perfusion
        3. Can be cured at room temperature or heat curing
        4. Good softness

        5. Tight sealing, no oil after curing
        6. This product in the curing reaction does not produce any by-product
        7. This sealing silicone rubber has a good sealing effect in a very wide range from -60 ° C to 200 ° C. it has a good sealing effect at low temperatures, so there’s no limitation to temperature when install filters or moving the filter

        TWO PART SEALING SILICONE GEL PACKAGE:
        HY-210 and HY-215: 22kg/set(Part A 20kg+ Part B 2kg); or 220kg/set(Part A 200kg+ Part B 20kg)
        HY-90 and HY-93 series: 40kg/set(Part A 20kg+ Part B 20kg); or 400kg/set(Part A 200kg+ Part B 200kg)

        TWO PART SEALING SILICONE GEL SHELF LIFE:
        Twelve(12) months when stored under dry and cool place by original package under 25℃.



        TWO PART SEALING SILICONE GEL TECHNICAL DATASHEET:

        Model

        Color

        Viscosity

         (cps)

        Hardness

         (A°)

        Mixing

        ratio

        Operating

        Time(hr, 25℃)

        Curing

        Time(hr, 25℃)

        HY-9300

        Water clear

        1800±800

        /

        1:1

        1~2

        12~14

        HY-9400

        Water clear/ Blue

        1800±800

        /

        1:1

        1~2

        12~14

        HY-9405

        Water clear/ Blue

        750±50

        /

        1:1

        1~2

        12~14



        Note: Above technical datasheet doesn’t include all of our products, and it’s not the fixed data, they can be adjustable according

        to customer’s requirement.
