        • Product Name: Mold Making Silicone Rubber
        • Product No.: Mold Making Silicone Rubber
        • Brand: Hong Ye Silicone
        • Product Usage: Making molds for making molds ,Crafts ,Arts,Furniture ,Sculptures product..
        • Commodity price: Discuss personally
        • Views : 84

        MOLD MAKING SILICONE RUBBER APPLICATION:

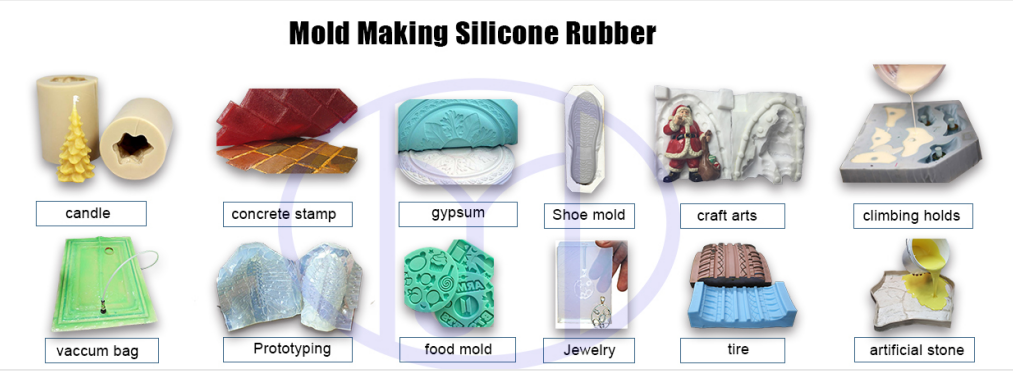

        Liquid RTV mould making silicone rubber is a kind of flexible mold making material with different hardness from 10 shore A to 40 shore A, suitable for making molds for
        Building decorations of plaster, gypsum, concrete, art stone, marble, cement, reinforced plastic, fiber glass resin, GRC, GFRC etc.
        Crafts of PVC, plastic, low melting point alloy, wax etc.
        Arts of candle, soap, relief etc.
        Furniture of polyurethane wood imitation, resin, polyester, polyurethane, urethane etc.
        Sculptures of clay, mud, pottery, terracotta, ice, ceramic, statues, figurine etc.
        Molding rtv silicone is also suitable for manual mold design of shoe sole, airplane model / flying model, mobile cover / mobile shell, toys etc.
        And this mould grade rtv silicone is also a precast and casting material, suitable for aluminum casting, lost wax casting, bronze casting, tire molding, foundry mold etc.

        And transparent platinum cure silicone rubber is also suitable for molding resin rhinestones, artificial jewelries, crystaline and so on with its high transparency.

        For food grade mold making silicone rubber, it’s used for making silicone molds for confection, chocolate tray, jelly tray, sugar tray, candy, cake, biscuit, cracker, ice cream, ice sculpture, butter, fondant, bread, baking and other food decorations.

        Some times, we also call life casting silicone rubber as a kind of mold making silicone rubber, because sometimes we use this rtv-2 skin safe silicone rubber to brush on human body to make the mother mold of arms and legs, face, breast etc. Which will help to get the silicone molds to make silicone prosthesis, silicone organs and silicone dummies.


        MOLD MAKING SILICONE RUBBER DESCRIPTION:
        Our RTV-2 Molding materials are general called two-component room temperature vulcanization liquid silicone rubber with excellent fluidity and good operational performance. Add curing agent of 2%-5% to liquid silicone at the condition of room temperature, stir the mixture evenly, then pour or brush the liquid mixture to the mother mold, then after 2-6 hours, a flexible silicone rubber mold will be obtained with resistance to deformation, high-temperature, acid and alkali and expansion.
        (Note: Generally, there are two molding methods: pouring molding, brushing molding.)


        MOLD MAKING SILICONE RUBBER INSTRUCTION:
        1.If the customer wants to cast large size products with simple patterns , we should choose hard liquid silicone. On the contrary, if the mother mold is small size with fine details, we should choose soft rtv silicone.

        - For products size (20cm-80cm)
        with intricate designs, 20-25 shore A is suitable.
        with simple designs, 25-30 shore A is suitable.
        - For products size (80cm-150cm)
        with intricate designs, 25 shore A is suitable.
        with simple designs, 30-35 shore A is suitable.
        - For products size (more than 150cm)
        with intricate designs, 25-28 shore a A is suitable.
        with simple designs, 35-40 shore A is suitable.

        2. The amount of the curing agent depends on the actual requirements of customers. If molds requiring fast drying and demould, more curing agent is needed; contrarily, if molds require slower drying and demould, less curing agent will be needed.
         (Note: our company does not recommend that customers add silicone oil. If customers surely need quite soft silicone mold or molding for fine detailed and complex patterns products, 5%-10% silicone oil can be added to soften the mold for easy demoulding.)

        The proportions and reactions of the curing agent and the base silicone are listed as the followings:
          1. With 1% catalyst, the handing time is within 2.5 hours and silicone the mold can solidify after 8 hours.
          2. With 2% catalyst, the handing time is within 1 hour and the silicone mold can solidify after 6 hours.
          3. With 3% catalyst, the handing time is within 30 minutes and the silicone mold can solidify after 4 hours.
          4. With 4% catalyst, the handing time is within 15 minutes and the silicone mold can solidify after 2 hours.
        (Note: Above speculation is not fixed data, because we provide 5 types of catalyst with different curing speed)

        MOLD MAKING SILICONE RUBBER PACKAGE:

        1 kg/jar, 5 kg/drum, 20 kg/drum, 25 kg/drum, 200 kg/drum and vacuum package is available.

        MOLD MAKING SILICONE RUBBER SHELF LIFE:
        Twelve(12) months when stored under dry and cool place by original package under 25℃ .

        MOLD MAKING SILICONE RUBBER TECHNICAL DATASHEET:

        1. Addition cure / platinum cure rtv molding silicone rubber

        Model

        Color

        Viscosity

         (cps)

        Hardness

         (A°)

        Tensile

        Strength

        (Mpa)

        Tear

        Strength

        (kN/m)

        Elongation

        (≥%)

        Mixing

        ratio

        Handing

        time(min)

        Curing

        Time

        (hr, 25℃)

        HY-E610

        Translucent

        3500+1000/-1500

        10±2

        5

        17

        ≥400

        1:1/10:1

        30~60

        3~5

        HY-E615

        Translucent

        3500+1000/-1500

        15±2

        5.51

        19

        ≥400

        1:1/10:1

        30~60

        3~5

        HY-E620

        Translucent

        5000+1000/-2000

        20±2

        7.5

        31

        ≥400

        1:1/10:1

        30~60

        3~5

        HY-E625

        Translucent

        6000+1500/-2000

        25±2

        8

        30

        ≥400

        1:1/10:1

        30~60

        3~5

        HY-E630

        Translucent

        6500+1500/-2000

        30±2

        9

        17

        ≥350

        1:1/10:1

        30~60

        3~5

        HY-E635

        Translucent

        8000+2000/-3000

        35±2

        9

        17

        ≥350

        1:1/10:1

        30~60

        3~5

        HY-E640

        Translucent

        8000+2000/-3000

        40±3

        9

        17

        ≥300

        1:1/10:1

        30~60

        3~5

        HY-E640

        Translucent

        25000+10000/-15000

        40±3

        8.5

        18

        ≥250

        1:1/10:1

        30~60

        3~5

        HY-E650

        Translucent

        11000+30000 /-4000

        50±3

        8

        16

        ≥200

        1:1/10:1

        30~60

        3~5

        HY-E660

        Translucent

        16000+5000 /-8000

        60±3

        6

        11

        ≥80

        1:1/10:1

        30~60

        3~5

        HY-Q630

        Transparent

        14000+3000 /-5000

        30±2

        4.5

        12

        ≥400

        1:1/10:1

        30~60

        3~5

        HY-Q640

        Transparent

        35000+10000/-20000

        40±3

        4

        11

        ≥150

        1:1/10:1

        30~60

        3~5

        2. Condensation cure / tin cure rtv molding silicone rubber

        Model

        Viscosity

         (cps)

        Hardness

         (A°)

        Tensile

        Strength

            (Mpa)

        Tear

         Strength

           (kN/m)

        Elongation

         (≥%)

        Mix

        ratio(%)

        Handing

        time(min)

        Curing

         Time

        (hr, 25℃)

        HY-610

        10000+2000/-4000

        10±2

        2.6

        12

        ≥320

        2~5

        30~60

        3~5

        HY-615

        13000+2000 /-4000

        15±2

        3.5

        20

        ≥350

        2~5

        30~60

        3~5

        HY-620

        17000+2000 /-4000

        20±2

        4

        23

        ≥400

        2~5

        30~60

        3~5

        HY-625

        25000+5000 /-8000

        25±2

        4.8

        29

        ≥400

        2~5

        30~60

        3~5

        HY-630

        27000+5000 /-8000

        30±2

        5.3

        31

        ≥400

        2~5

        30~60

        3~5

        HY-635

        27000+5000 /-8000

        33±2

        5.3

        29

        ≥200

        2~5

         30~60

        3~5

        HY-640

        15000+2000 /-5000

        36±2

        4.5

        22

        ≥150

        2~5

        30~60

        3~5

        HY-220

        11000+2000 /-3000

        20±2

        2.8

        6

        ≥230

        2~5

        30~60

        3~5

        HY-220

        high class

        11000+2000 /-3000

        20±2

        2.8

        14

        ≥250

        2~5

        30~60

        3~5

        Note: Above technical datasheet doesn’t include all of our products, and it’s not the fixed data, they can be adjustable

        according to customer’s requirement.
